In today’s production environment, reliable and sustainable power isn’t just a nice-to-have—it’s essential. Haddad’s hybrid power systems are engineered for the unique demands of film and television, delivering consistent, clean, and quiet energy that moves with your set.
Whether you need silent power or a system that can keep up with long days on location, Haddad’s offers two powerful options: the Basecamp Battery and the Hybrid Stakebed. Both are built with advanced Battery Energy Storage System (B.E.S.S.) technology and backed by safety-first engineering.
Option 1: Haddad’s Basecamp Battery – Silent, Safe, and Smarter Power
Haddad’s Basecamp Battery is a cutting-edge B.E.S.S. solution designed for efficient energy storage and reliable output. Designed with the unique demands of film industry transportation departments in mind, this battery provides a sustainable alternative to traditional generators.
What Is B.E.S.S.?
Battery Energy Storage Systems (B.E.S.S.) offer a clean, efficient, and portable energy solution, reducing reliance on noisy and polluting diesel generators. B.E.S.S. ensures uninterrupted power supply while supporting sustainability efforts.
Key Benefits:
- Quiet Operation
- Eco-Friendly
- Reliable Power Supply
- Cost-Effective
- Portable & Scalable
Technical Specifications:
- Battery Type: Lithium-Ion
- Storage Capacity: 198kWh
- Output Power: 36kW Continuous / 42kW Peak
- Voltage: 120/240V Single-Phase Output
- Run Time: 16-18 hours at 100 amps, 6 hours at 300 amps
- Charge Time: 2-6 Hours
- Connections: Camlock In/Out
- Monitoring: Digital LED Display & Bluetooth Telematics
- Additional Feature: Pass-Through Capability
7 Layers of Safety:
- High-Integrity Battery Cells: Tested for shock, impact, heat, vibration, and overcharging.
- Sealed & Durable Modules: Aluminum-encased, internally fused, IP67 rated.
- Smart Battery Management System (BMS): Real-time monitoring, cell balancing, over/under-voltage protection.
- Heavy-Duty Pack Housing: Steel-enclosed, weather-resistant, ANSI/CAN/UL1973 certified.
- Contactors & Disconnects: High-current switches, arc suppression, safety contacts.
- Integrated Safety Architecture: Full system design to minimize risk of failure.
- Built on Real-World Collaboration: Developed based on field use, prioritizing reliability and ease of use.
The Basecamp Battery offers cleaner, quieter, and more efficient power compared to traditional generators, making it ideal for various applications.

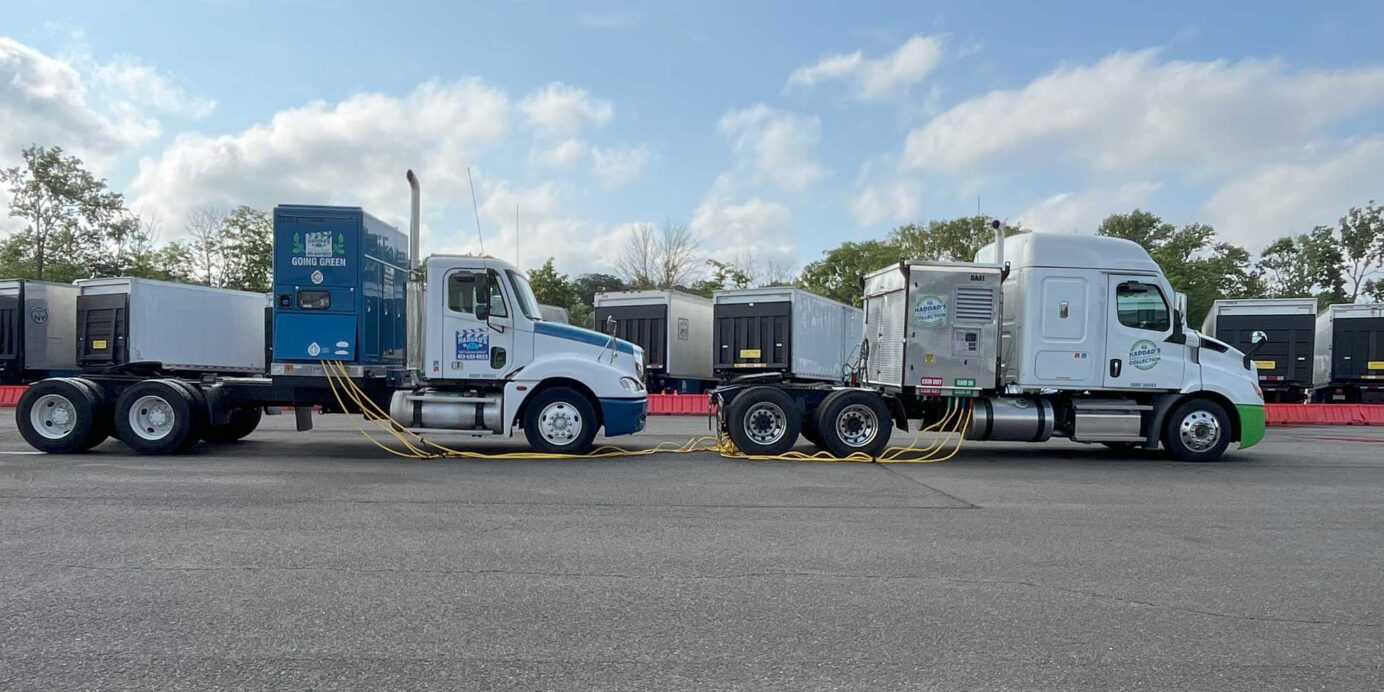

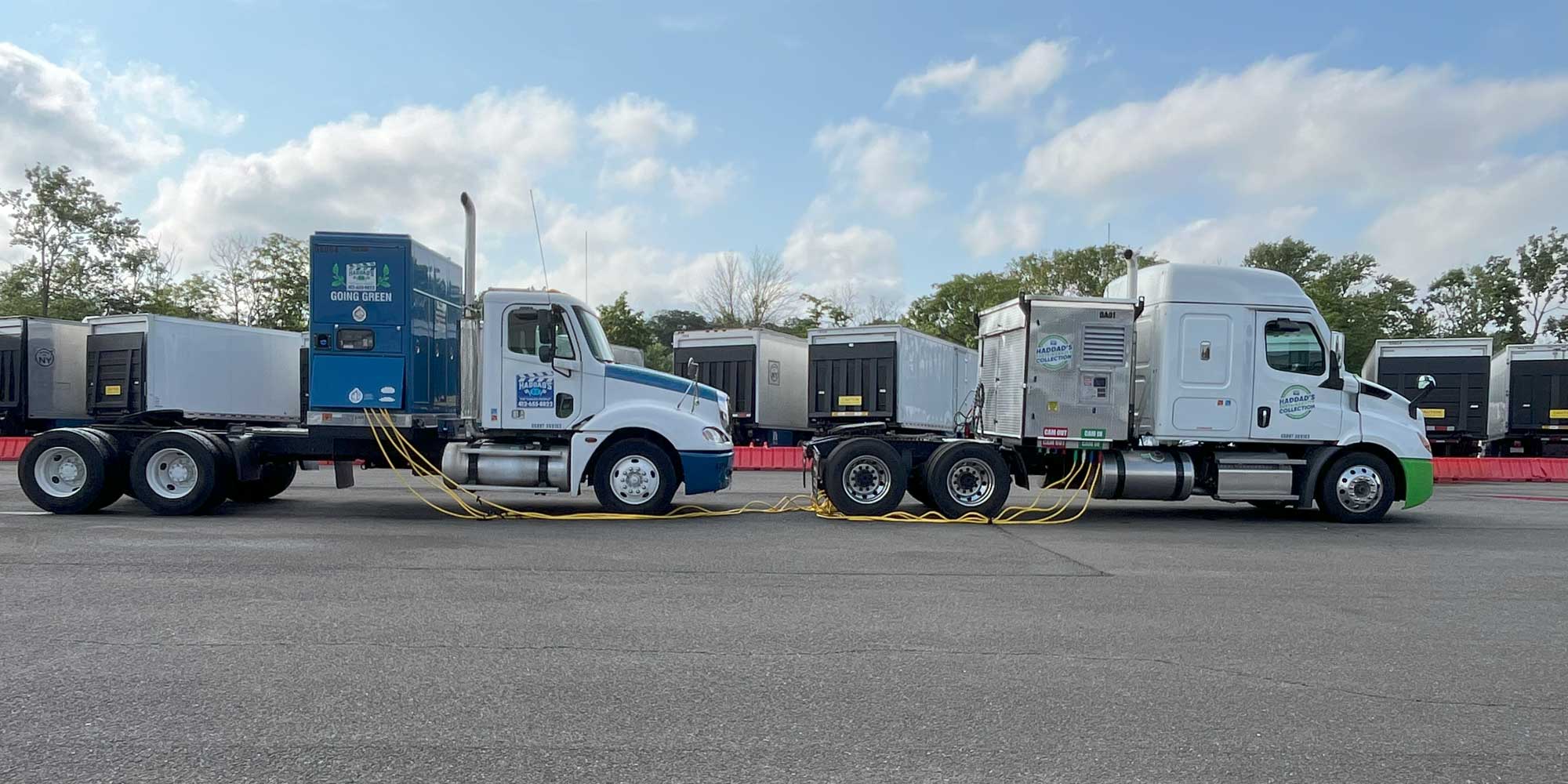

Option 2: Haddad’s Hybrid Stakebed – Continuous, Efficient, and Low-Emission Power
Haddad’s Hybrid Stakebed combines a B.E.S.S. with a Tier 4 diesel generator, ensuring continuous, efficient, and low-emission power. This system provides quiet, clean energy while the generator acts as a backup and recharging source.
Battery Features:
- 198kWh lithium-ion battery
- Run Time: 16-18 hours @ 100 amps, 6 hours @ 300 amps
- Recharge Time: 2-6 hours
- Output: 36kW continuous, 42kW peak
- Voltage: 120/240V single-phase output
- Bluetooth monitoring
- Pass-through capability
Generator Features:
- 1400-amp generator with Tier 4 diesel engine
- Super quiet: 55 decibels from 23 feet
- Capable of using renewable diesel
- Truck mounted for easy mobility
How the Generator Complements the Battery:
- Recharges the battery for minimal downtime and continuous operation
- Provides backup power if loads exceed battery output
- Pass-through capability ensures uninterrupted operation
- Quiet and eco-friendly compared to traditional generators
- Easily transportable for splinter job sites, remote locations, and mobile power needs
Emissions Comparison: Tier 3 vs. Tier 4 (running at 300 amps)
- NOx: 4.00 g/kWh (Tier 3) vs. 0.40 g/kWh (Tier 4)
- PM: 0.20 g/kWh (Tier 3) vs. 0.02 g/kWh (Tier 4)
- CO and HC: Same levels for both tiers
Additional Generator Advantages:
- Selective Catalytic Reduction (SCR) and Diesel Particulate Filters (DPF) reduce harmful emissions
- High-pressure common rail (HPCR) fuel systems for cleaner combustion
- Load-sensing technology to adjust power output and conserve fuel
- Reduced idling time and fuel waste
- Eco-friendly engine materials
The Hybrid Stakebed delivers clean, silent energy while the generator provides reliability and recharging power, making it a sustainable, high-performance alternative to traditional power sources.
